ZHONGQIN
PU pneumatic hose product details
Product name | PU pneumatic hose |
| Brand | Zhong Qin |
| material | TPU 100% new material |
| specification | 4x2.5mm, 6x4mm, 8x5mm, 10x6.5mm, 12x8mm, 14x10mm, 16x12mm. |
| length | 200 m / roll, 100 m / roll |
| characteristic | Smooth and flexible, good elasticity, resistance to bending, small bending radius |
| hardness | 80A~98A |
| colour | Transparent, orange, blue, black, or specified color. |
| certificate | ISO9001, SGS test |
| life span | More than 5 years |
| Production capacity | 50000~80000 m / day |
PU pneumatic hoseProduct Features

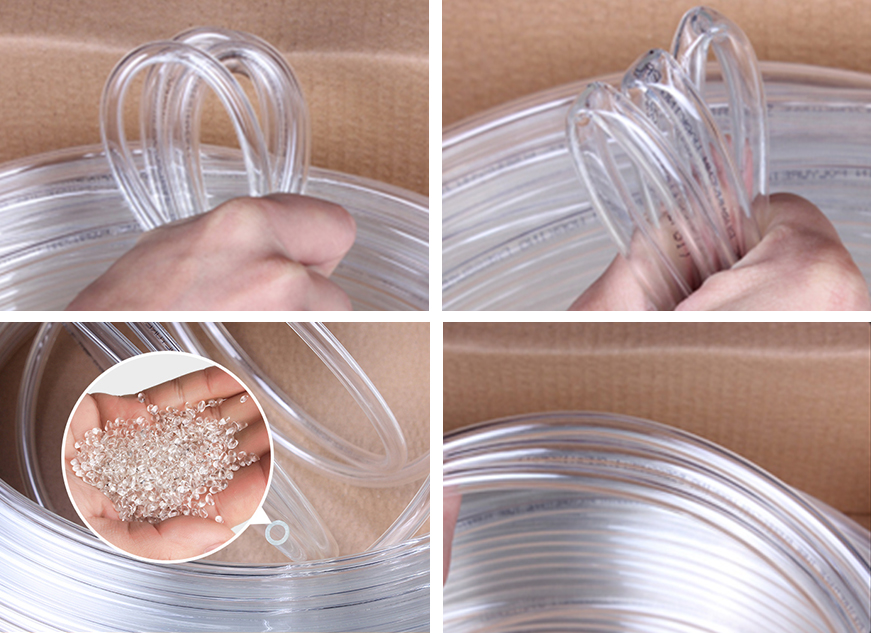

1. Made of new imported TPU raw materials, stable quality, high pressure resistance, weather resistance and wear resistance.
2. The pipe body is smooth and flexible, with good elasticity, resistance to bending, small bending radius and easy installation.
3. It does not contain plastic softener. The product can be certified by ROSH and SGS.
4. It is resistant to oxygen and ozone and has excellent aging resistance.
5. Working temperature -30 ° C ~ 70 ° C, working life of more than 5 years.
6. Adopt online diameter control system, the pipe diameter tolerance is controlled within ±0.2mm.
7. The transparent tube has high transparency and the state of the medium flow is clearly visible.
8. The color tube adopts imported weathering toner, and the color standard of the trachea produced is bright and bright, and the long-term work does not fade.
9. Can be used to assemble all kinds of pneumatic tools, pneumatic automatic machinery, air compressors and various connected pneumatic components.
10. Can be widely used in industrial, decoration industry and pneumatic supporting pipelines in various fields.
Attentions
1.Be careful when the ambient temperature or the fluid temperature is over 60℃.
2.Be careful when the ambient or the fluid is with the strong corrosivity such as strong acid, strong base and strong solvent. The possibility of the tube explosion exists in the severe corrosion environment.
3.Long time storage in the humid environment causes cracking because of the hydrolysis.
| Specification model | the inside diameter of | Outer diameter | length | Work pressure | Burst pressure | Bending radius | Operating temperature |
| Mm mm | Mm mm | mMeter | Mpa (20 ° C) | Mpa (20 ° C) | Mm mm | °C | |
| PU0302-200M | 2 | 3 | 200 | 1.0 | 3.0 | 15 | -30～70 |
| PU0425-200M | 2.5 | 4 | 200 | 1.0 | 3.5 | 20 | |
| PU0503-200M | 3 | 5 | 200 | 1.0 | 3.4 | 25 | |
| PU0604-200M | 4 | 6 | 200 | 1.0 | 3.3 | 25 | |
| PU0805-100M | 5 | 8 | 100 | 1.0 | 3.6 | 30 | |
| PU0855-100M | 5.5 | 8 | 100 | 1.0 | 3.0 | 30 | |
| PU1065-100M | 6.5 | 10 | 100 | 1.0 | 3.1 | 35 | |
| PU1208-100M | 8 | 12 | 100 | 1.0 | 3.0 | 35 | |
| PU1410-100M | 10 | 14 | 100 | 0.8 | 2.8 | 45 | |
| PU1612-100M | 12 | 16 | 100 | 0.8 | 2.7 | 50 | |
| PU1/8"-200M | 2 | 3.2 | 200 | 1.0 | 3.1 | 15 | |
| PU5/32"-200M | 2.5 | 3.97 | 200 | 1.0 | 3.5 | 20 | |
| PU1/4"-200M | 4.35 | 6.35 | 200 | 1.0 | 3.0 | 25 | |
| PU5/16"-100M | 5 | 7.94 | 100 | 1.0 | 3.6 | 30 | |
| PU3/8"-100M | 6.5 | 9.62 | 100 | 1.0 | 3.0 | 30 | |
| PU1/2"-100M | 9.6 | 12.6 | 100 | 0.8 | 2.7 | 40 |
